PVD Hard Coating
PVD hard coating is one of the best methods for optimising the hardness to residual compressive stress ratio. It uses a similar vacuum deposition coating method as the standard PVD coating that coats the product with a film of hard refractory material 2-7 microns thick. The differences between PVD hard coating and the standard PVD coating are:
- The materials enclosed in the vacuum chamber are heated to a maximum temperature of 500 celcius
- The duration of the coating time is longer
- 10x hardness

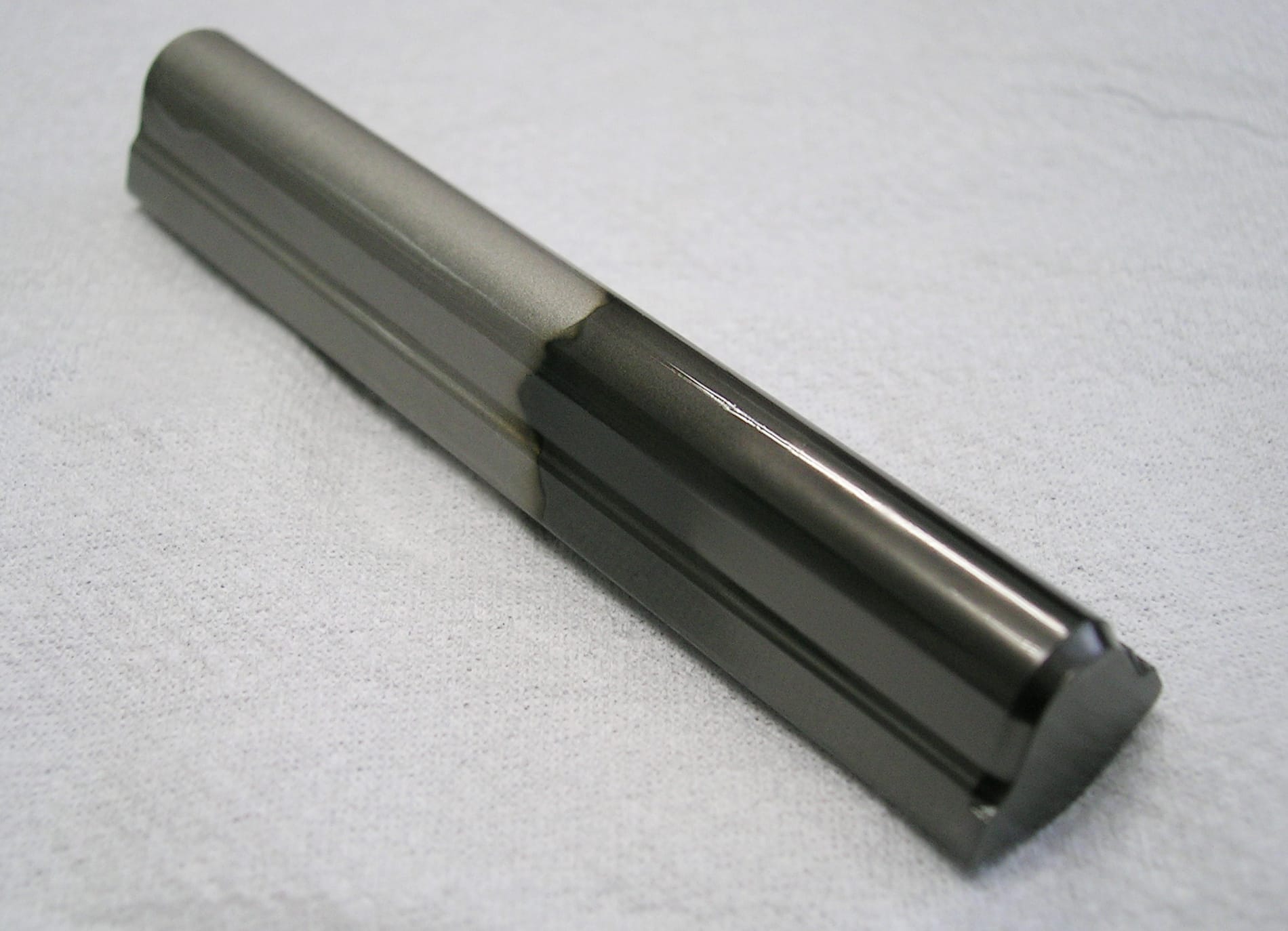

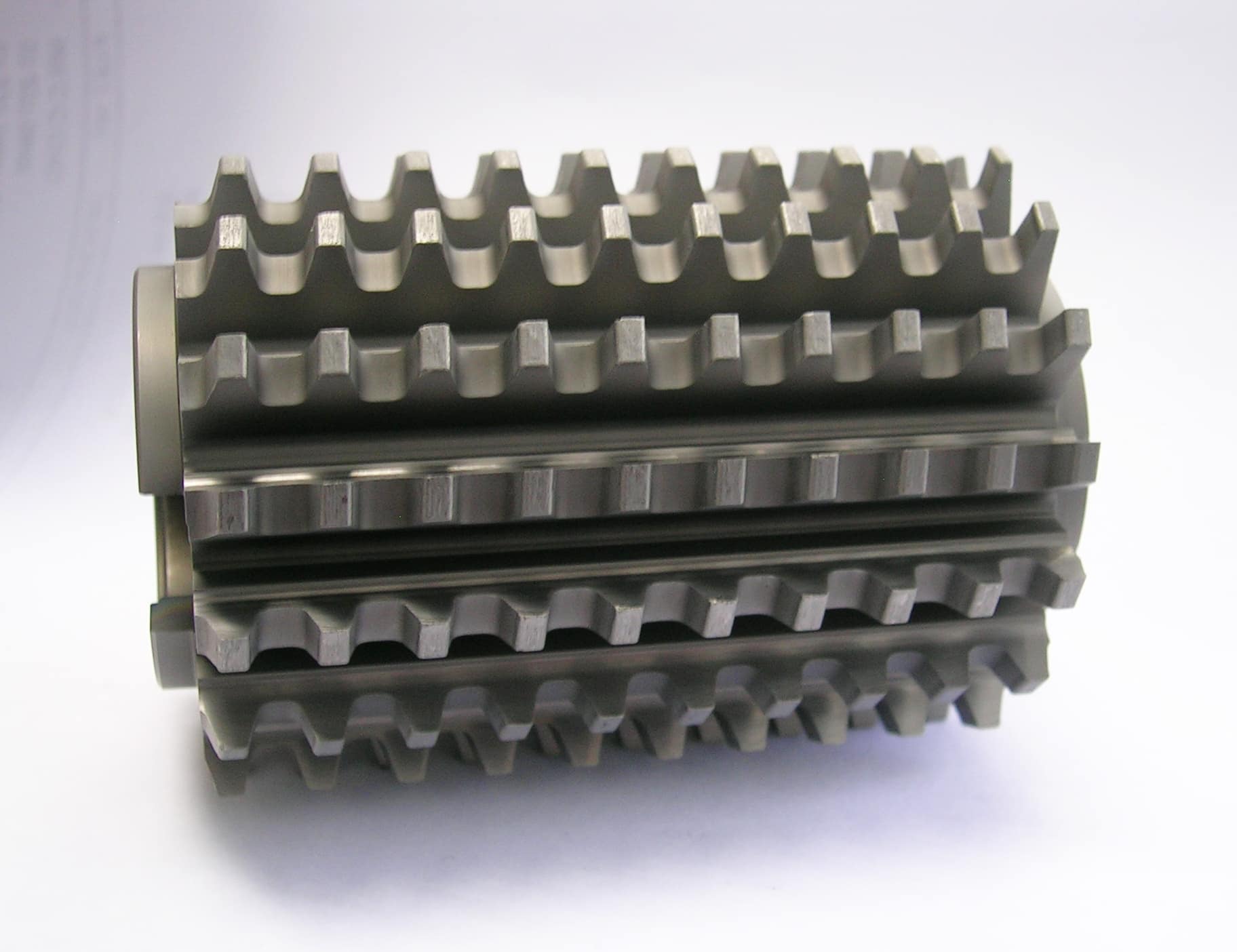

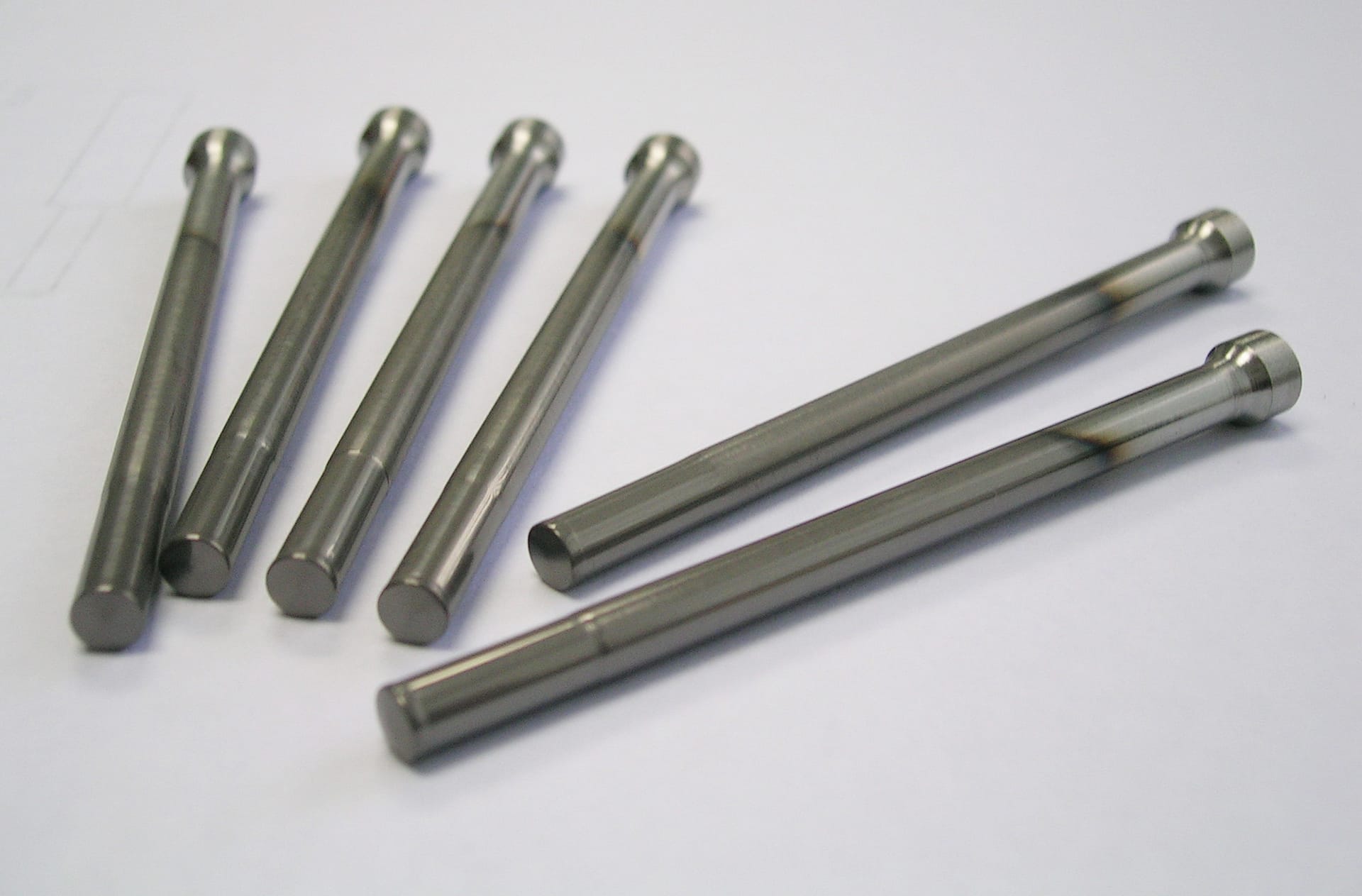

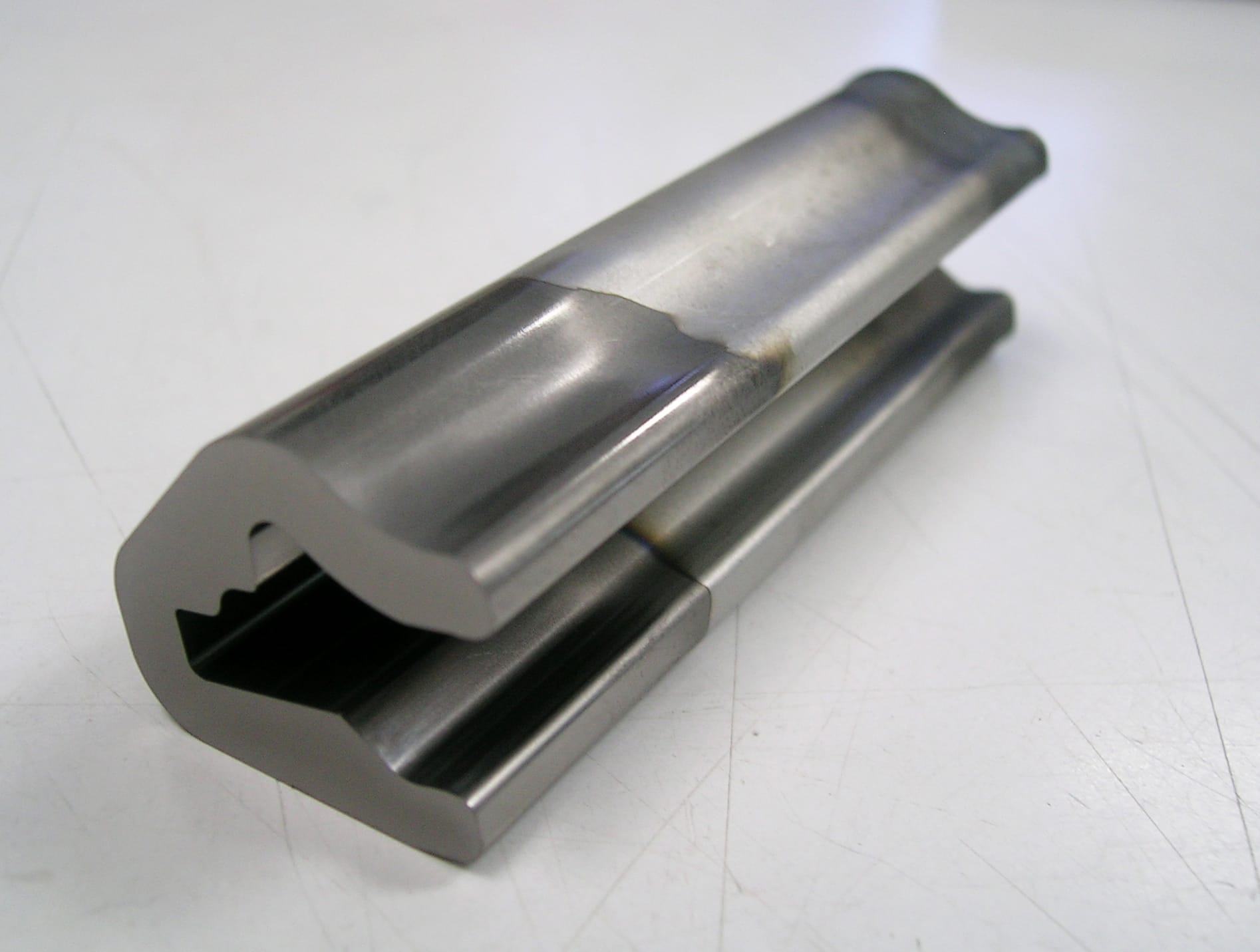

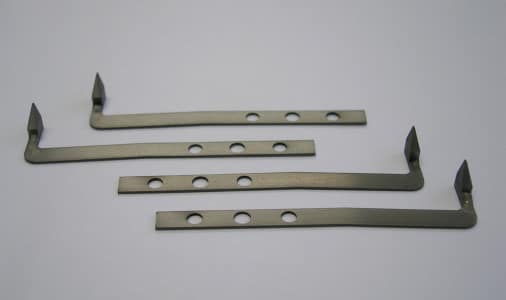

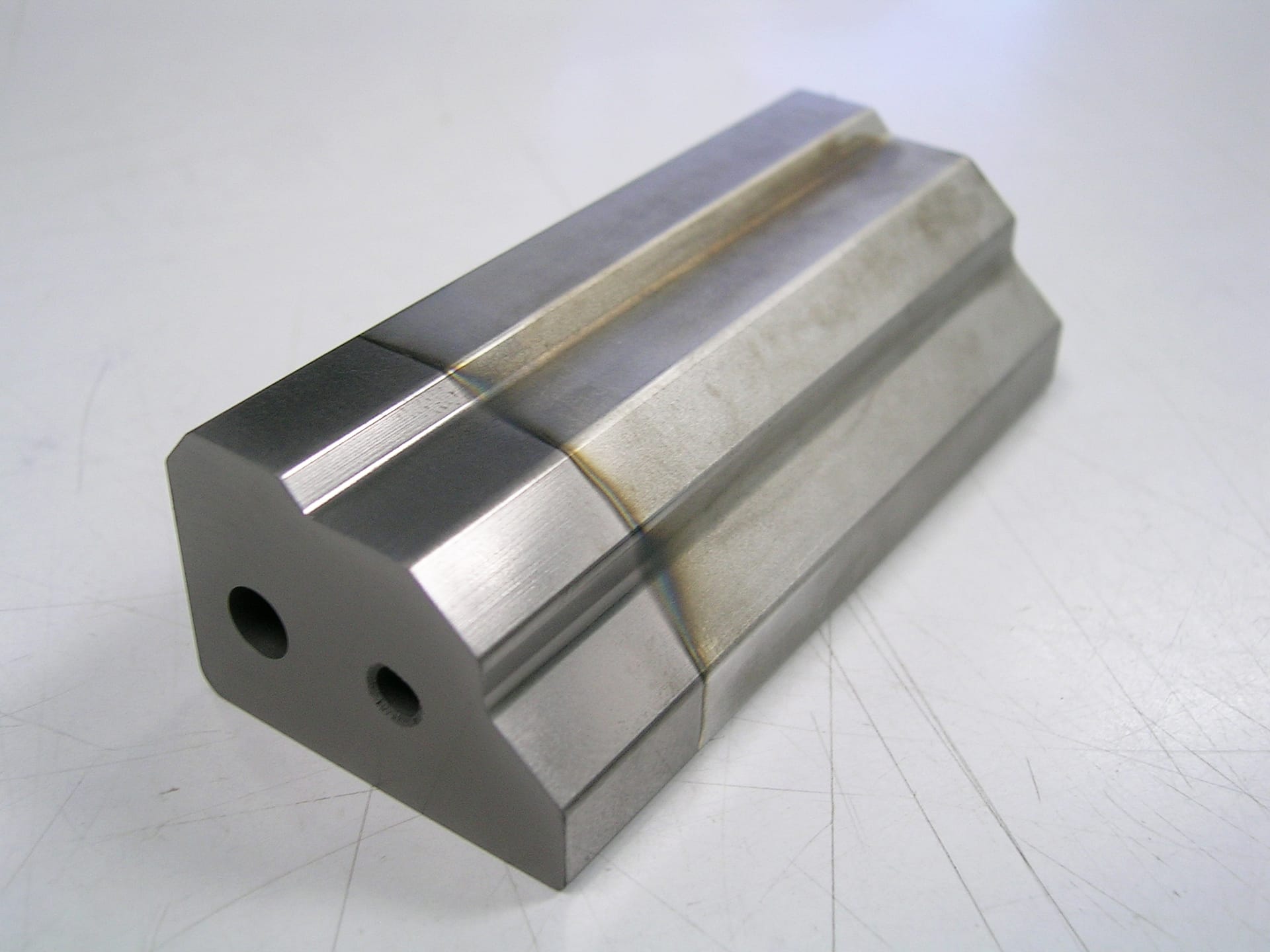

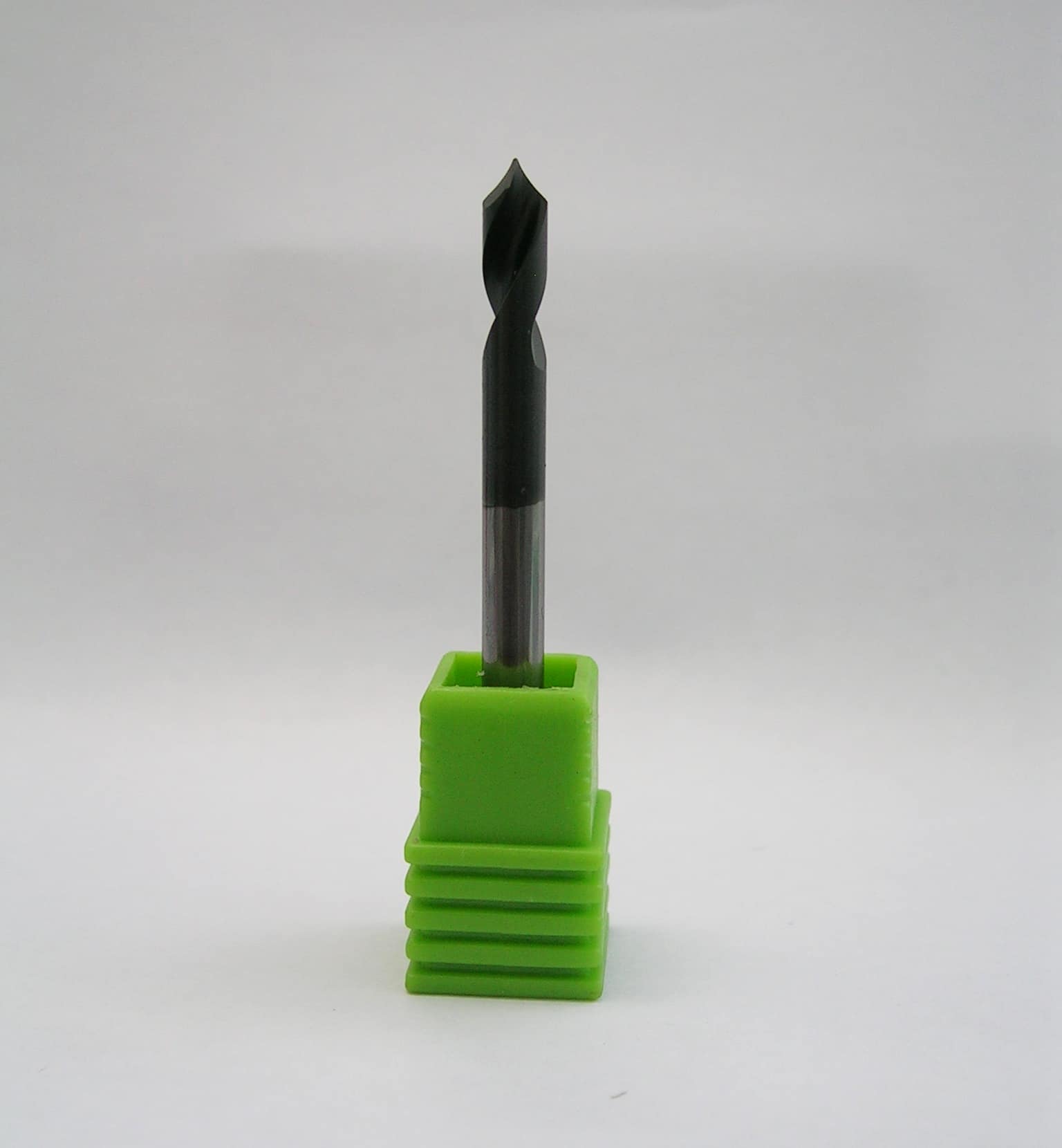

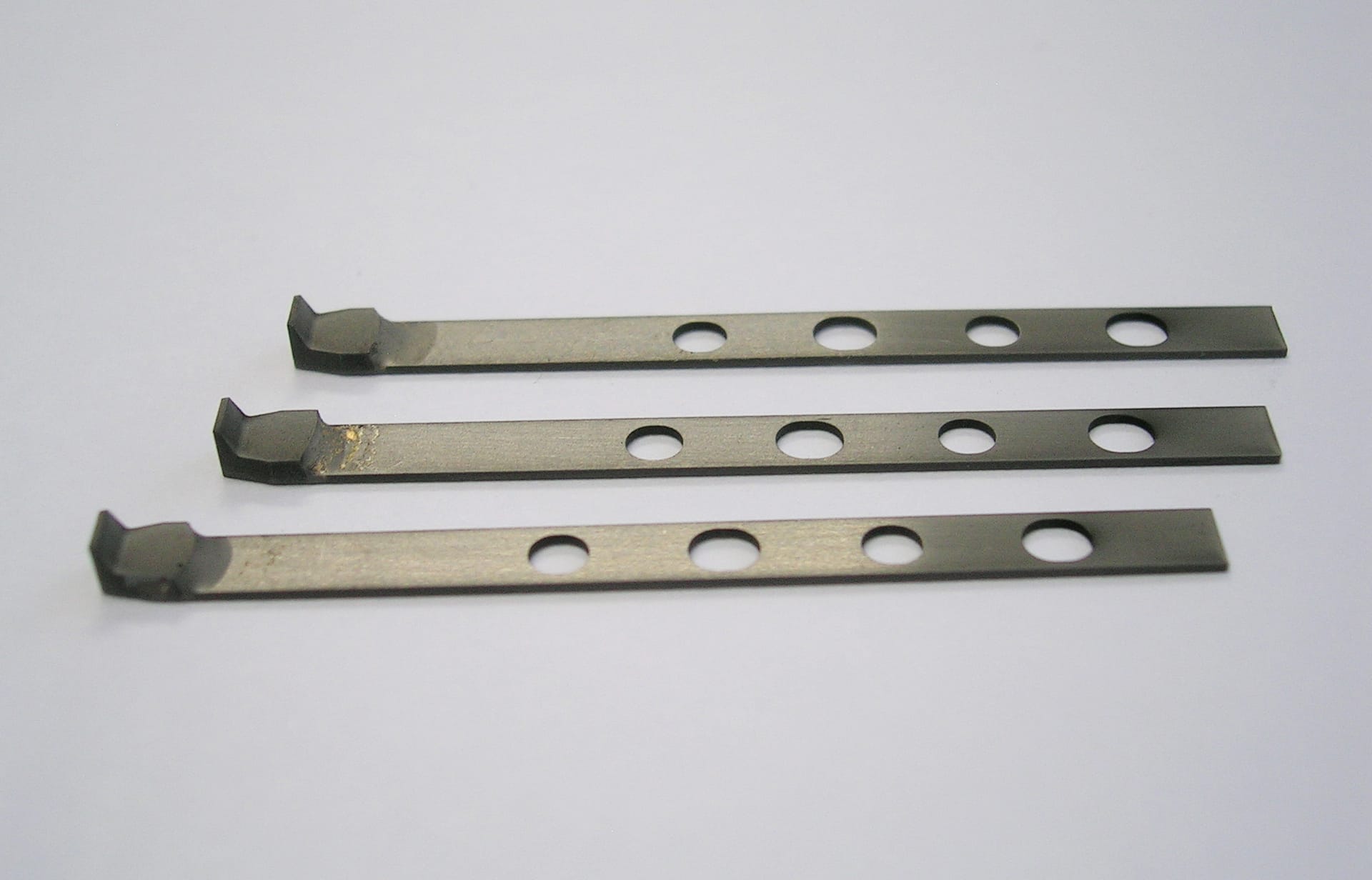

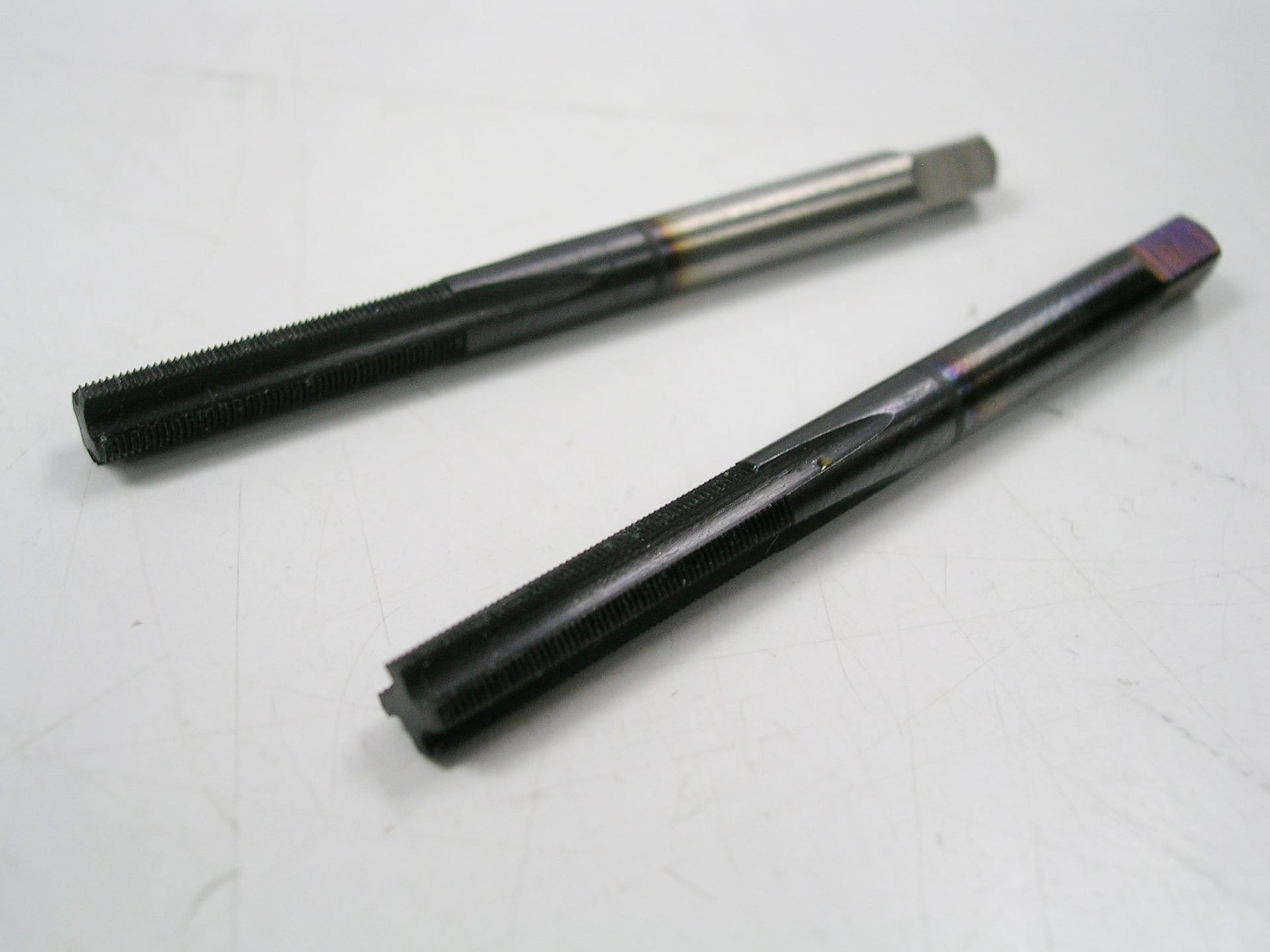

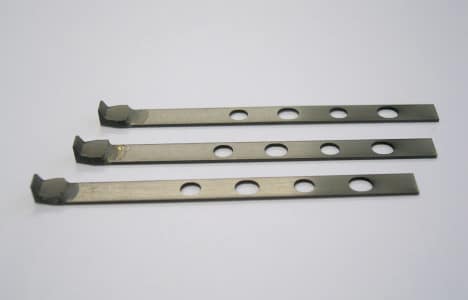

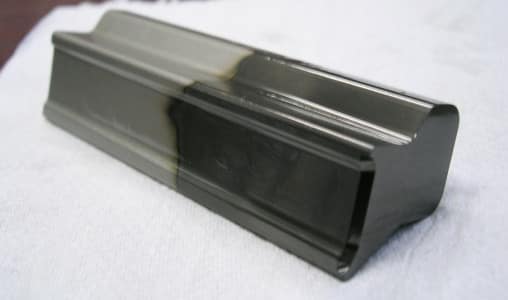

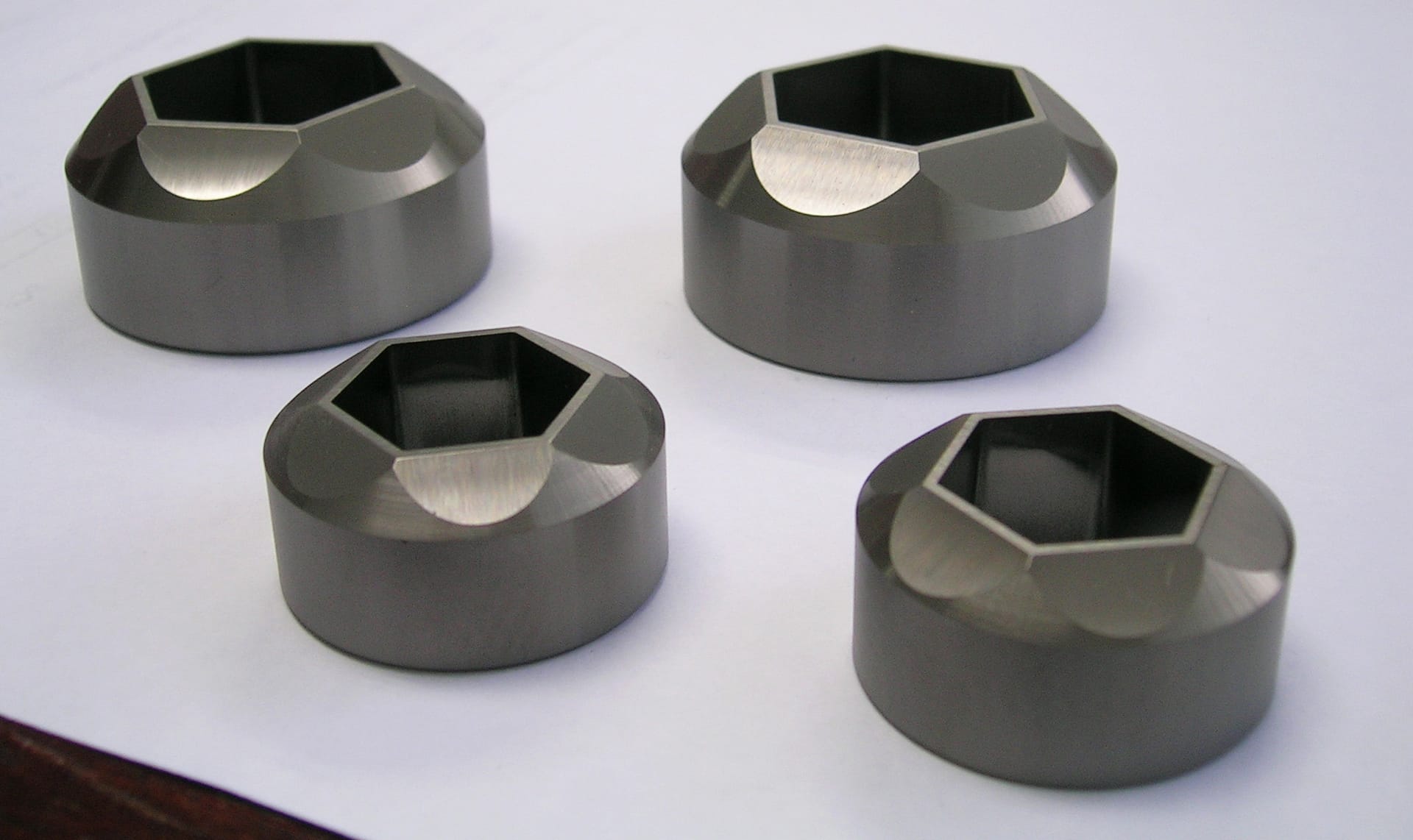

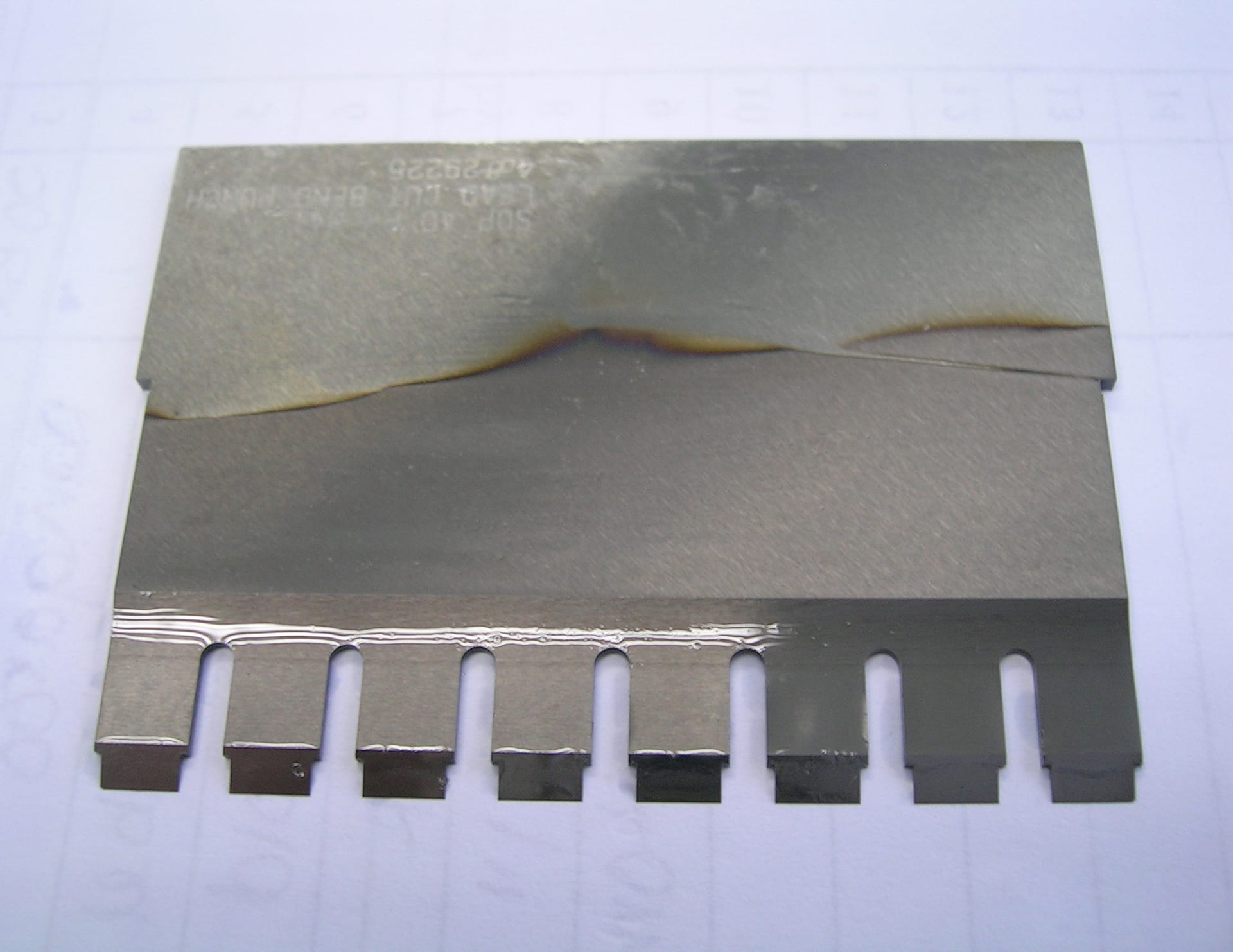

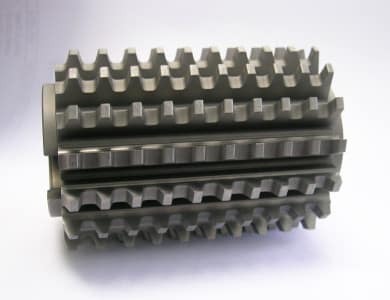

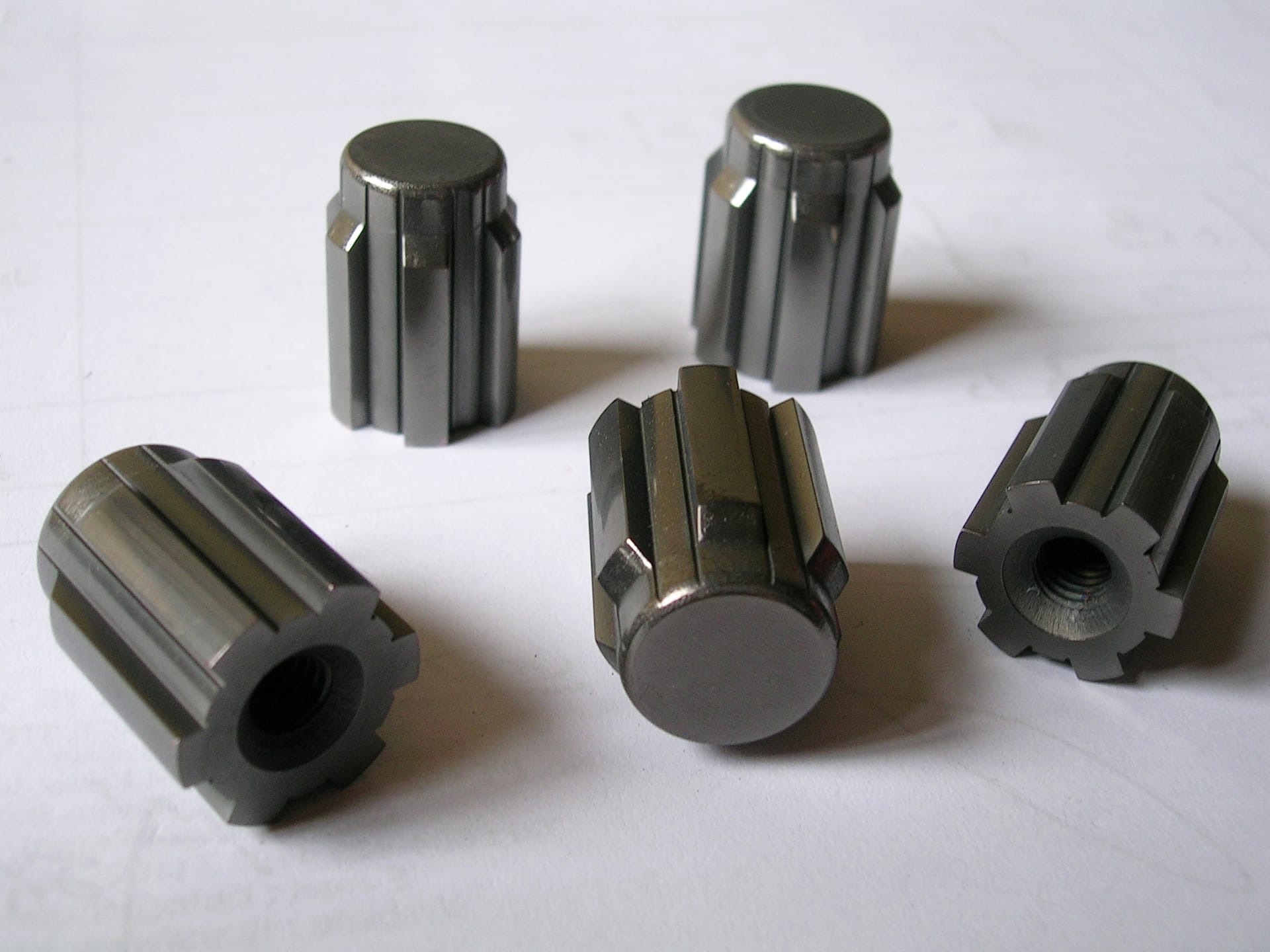

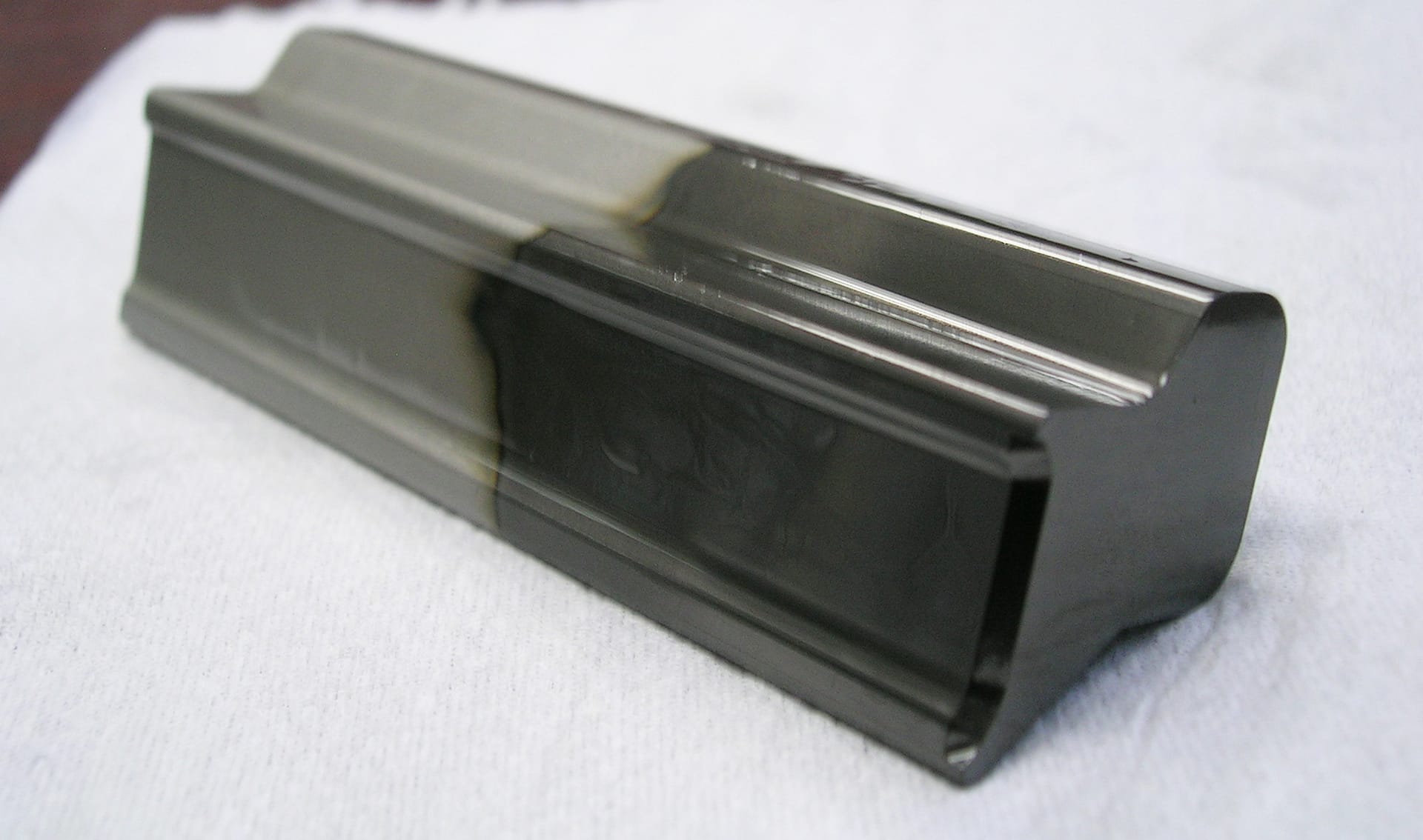

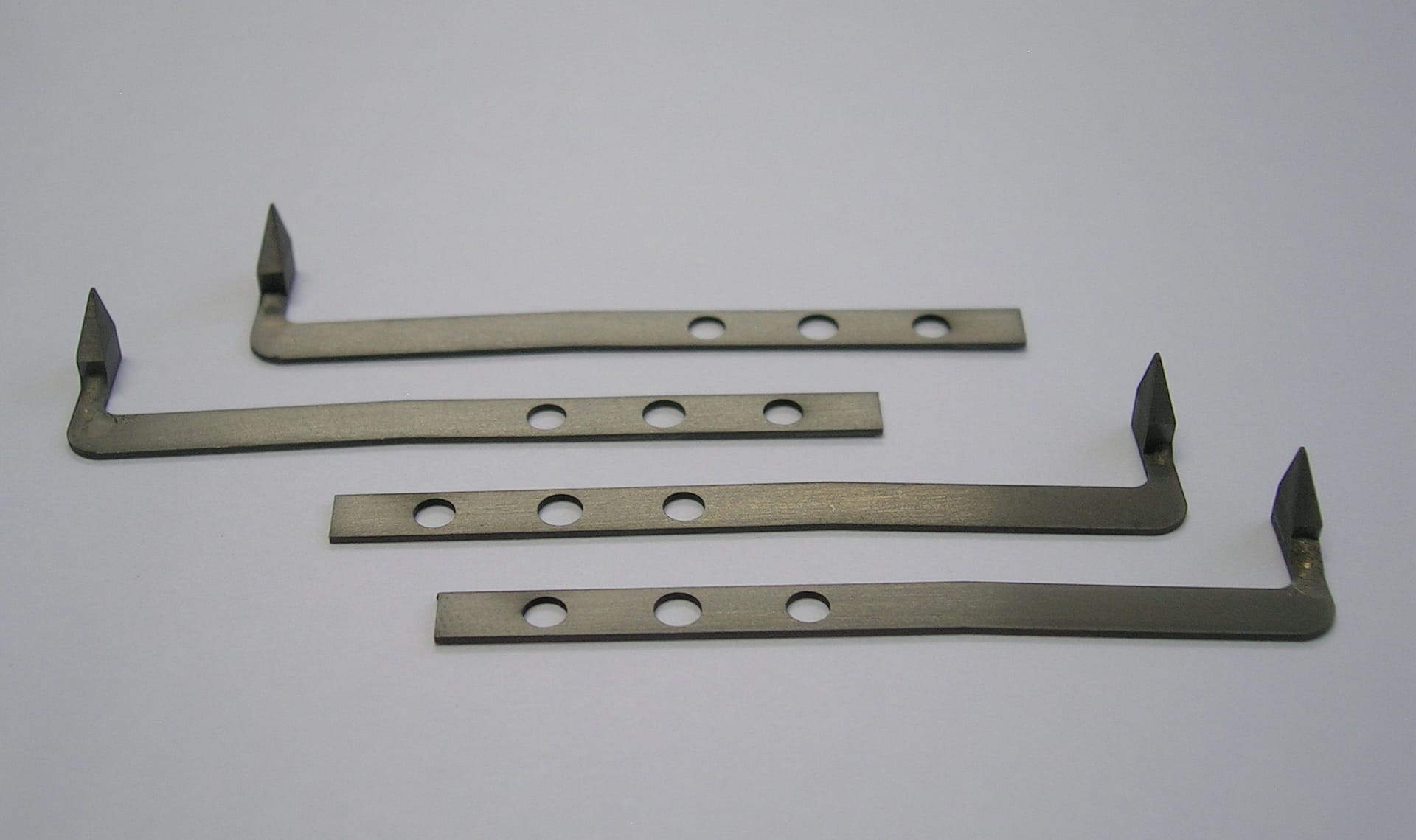

Titanium Carbo-Nitride (TiCN)
Types of Coating : Titanium Carbo-Nitride (TiCN)
Hardness (HV) : 3000 – 3500
Thickness (µm) : 2 – 5
Colours : Greyish-Black
Coating Temperature (°C) : ~500
